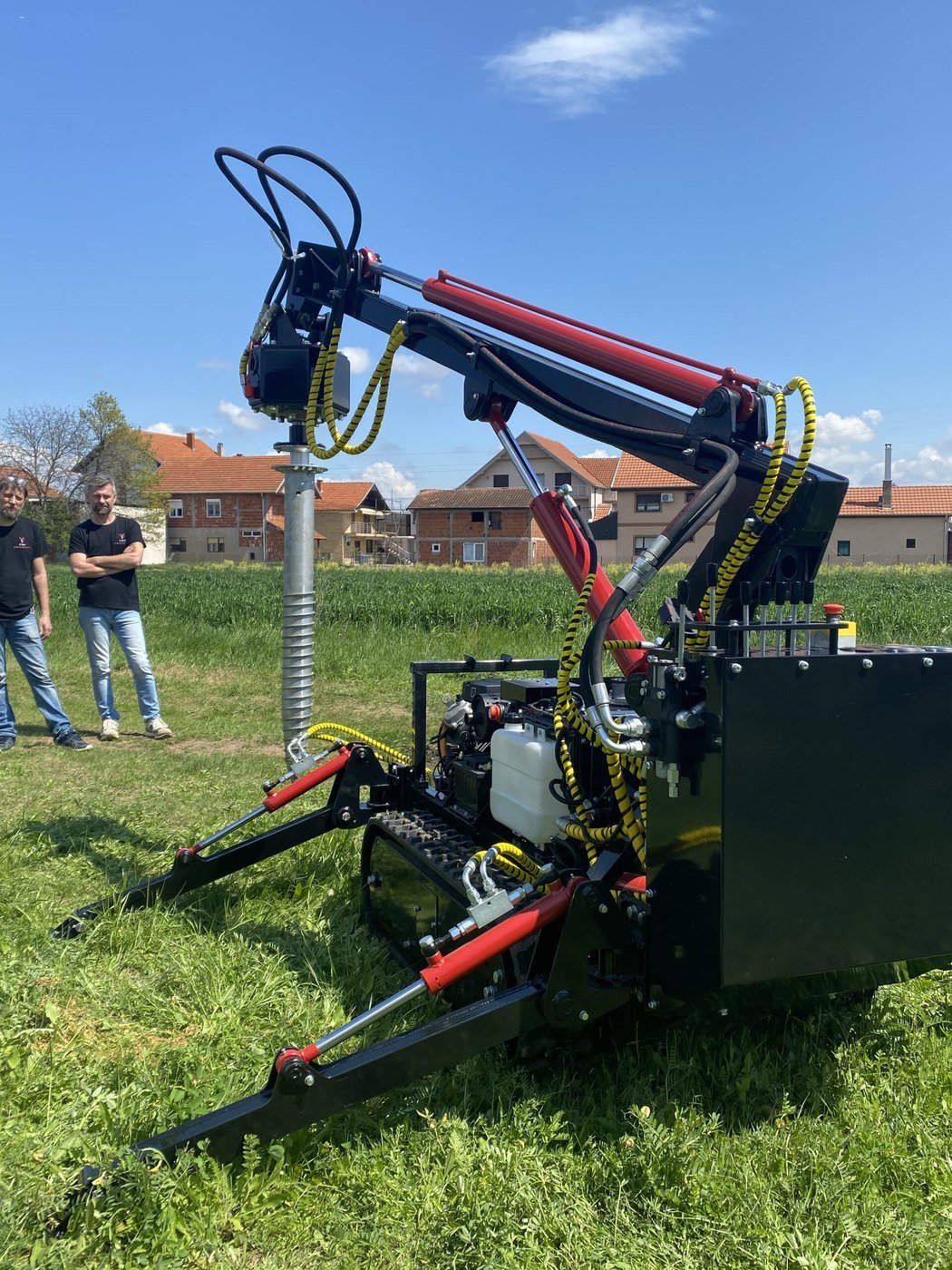

Description

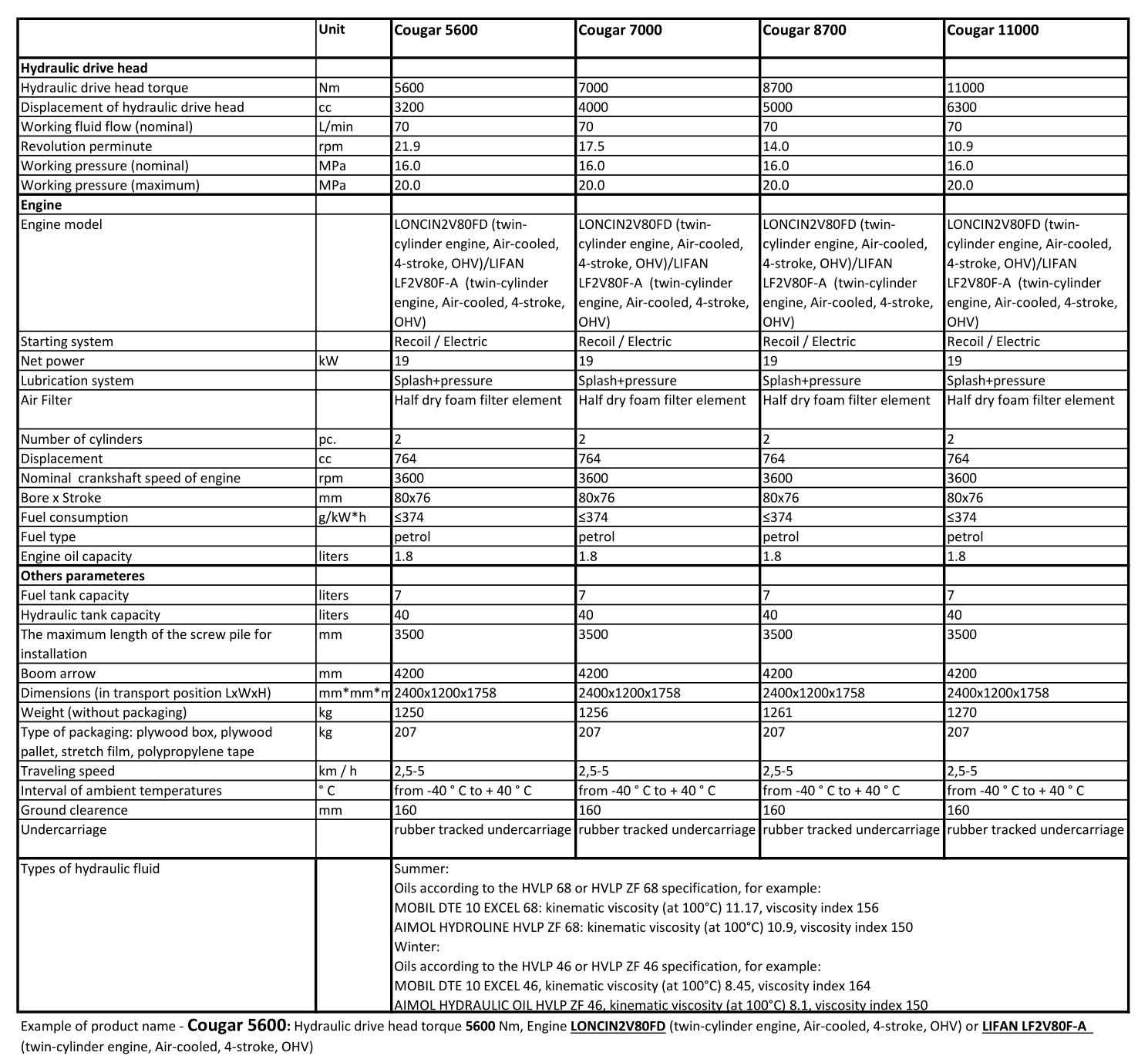

Key characteristics of the Cougar
-
-
Torque range: 5600 – 11,000 Nm
-
Flow: 70 L/min
-
Working pressure: 16–20 MPa
-
Engine options: LONCIN 2V80FD or LIFAN LF2V80F-A
-
Fuel tank capacity: 7 liters
-
Hydraulic tank capacity: 40 liters
- Maximum screw pile length: 3500 mm
-
Dimensions: 2400 × 1200 × 1758 mm
-
Weight (without packaging): 1250 – 1270 kg
-
Packaging: plywood box, stretch film, plastic pallet, polypropylene tape
-
Operating temperature range: from –40°C to +40°C
-
Why Cougar is so effective?
Built for heavy-duty work – The powerful drive head and torque up to 11,000 Nm ensure fast and efficient installation of foundation, even in dense and challenging soils.

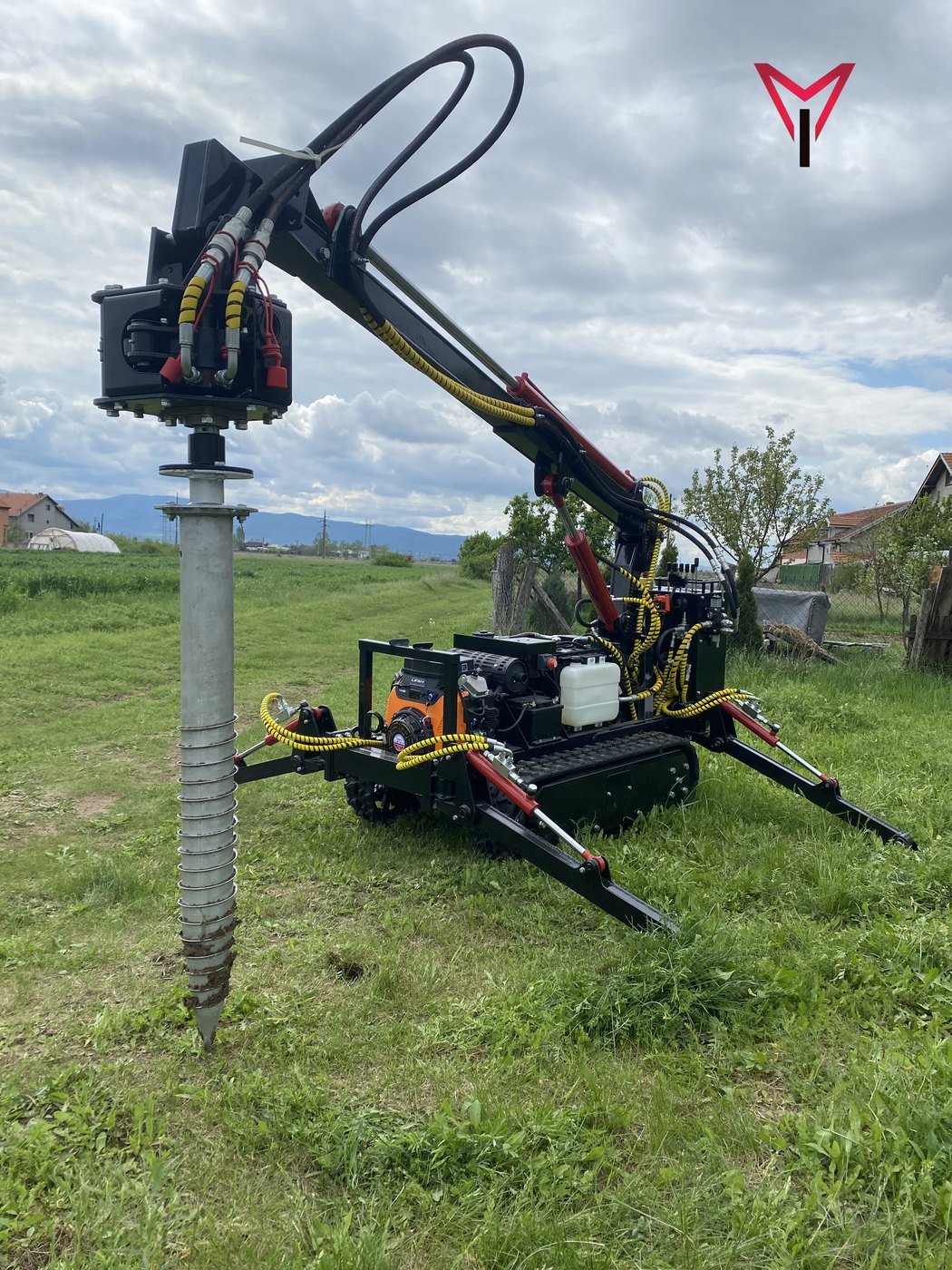

Handles large screw piles – Designed to install screw piles from Ø56 mm to Ø219 mm, including long and heavy-duty models.
Trusted by professionals – Cougar units are used on commercial projects across Germany, Great Britain, the US, Iceland, Thailand and others.
Ready for all seasons – Operates reliably in any climate — from –40°C to +40°C, whether it’s freezing, raining, or blazing hot.
No special maintenance required.
Cougar is engineered with a straightforward mechanical system — no complex electronics or fragile components. Regular basic maintenance is enough to keep it running strong, without the need for specialized service centers or diagnostic equipment.
Warranty obligations
Each Cougar unit comes with a factory warranty:
6 months or 960 engine hours — whichever comes first.
Worldwide Delivery
Cougar for sale – available worldwide with delivery by air, sea or truck, depending on your location and preference.
Every unit is safely packed using plywood pallet, stretch film, polypropylene tape.
Our packaging is designed for international transport and complies with global shipping standards.
Whether you’re in Europe, North America, Australia, or Asia — your machine will arrive safely and ready to work.
Cougar kit includes:
- Tracked chassis with swivel telescopic boom, hydraulic control panel for cylinders and motors, and wireless remote control for movement
- Helical pier drive head (attachment)
- Hydraulic power source
- User manual
Additional attachments such as adapters can be also included upon request.
Recommended fluid
To ensure smooth operation, use:
-
Summer: HVLP 68 or HVLP ZF 68 (e.g. MOBIL DTE 10 EXCEL 68 – viscosity index 156)
-
Winter: HVLP 46 (e.g. MOBIL DTE 10 EXCEL 46 – viscosity index 164)
