Description
Technical Specifications of the Falcon:
-

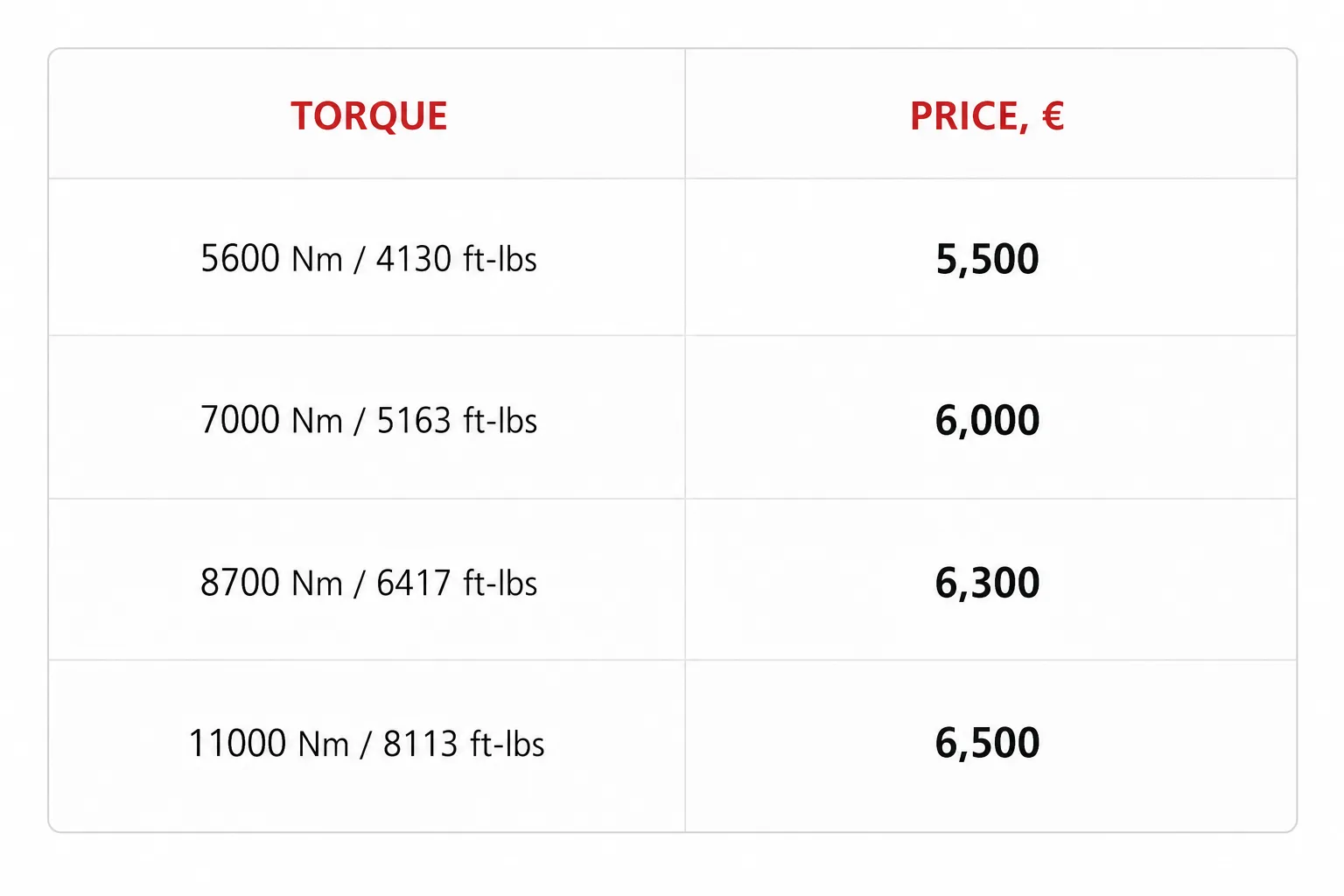

Torque range: 5600 – 11,000 Nm
-
Engine: LONCIN LC192FD (air-cooled, 4-stroke, petrol, OHV)
-
Net power: 10 kW
-
Fuel type: Petrol
-
Fuel tank capacity: 6.5 liters
-
Hydraulic tank capacity: 40 liters
-
Working pressure: 16–20 MPa
-
Dimensions (L×W×H): 1200 × 800 × 1000 mm
-
Weight (without packaging): 175–196 kg, depends on the torque you choose
-
Operating temperature: from –40°C to +40°C
-
Setup: Recoil/Electric start, high-pressure hoses included

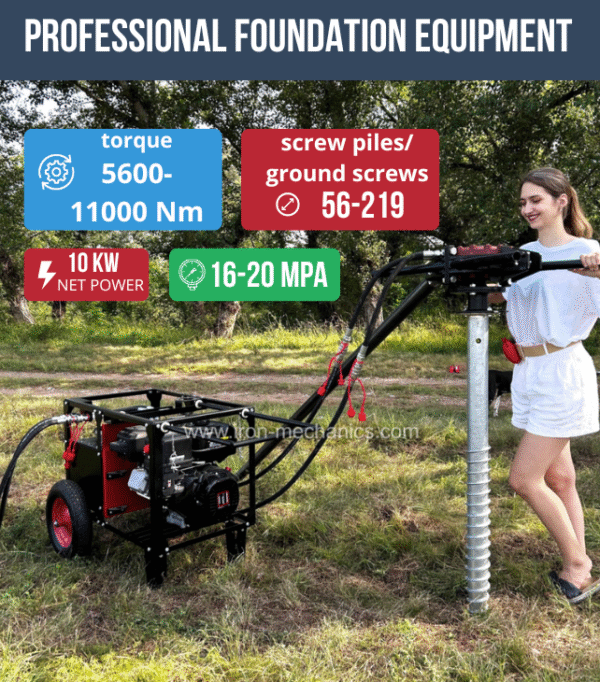

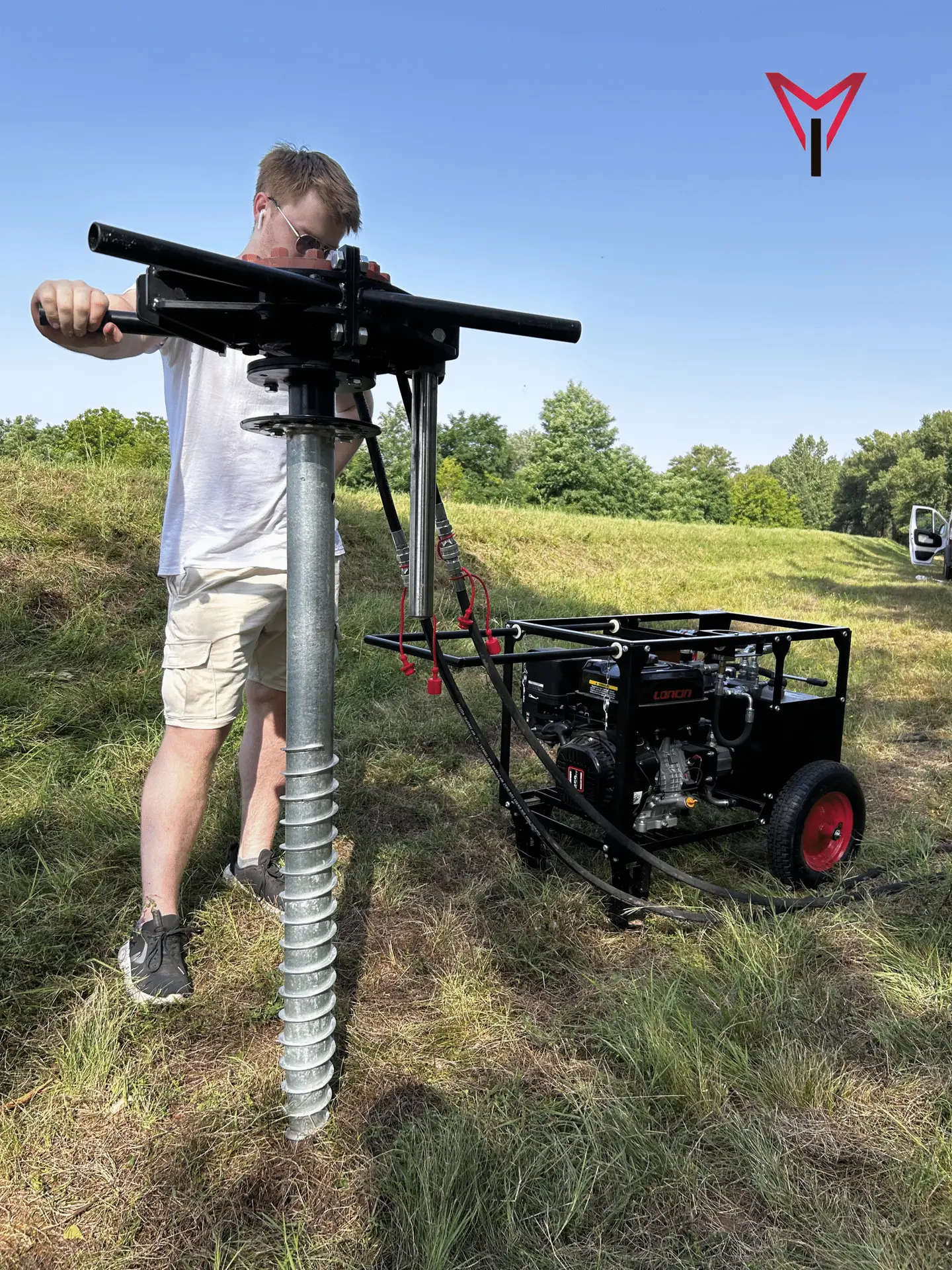

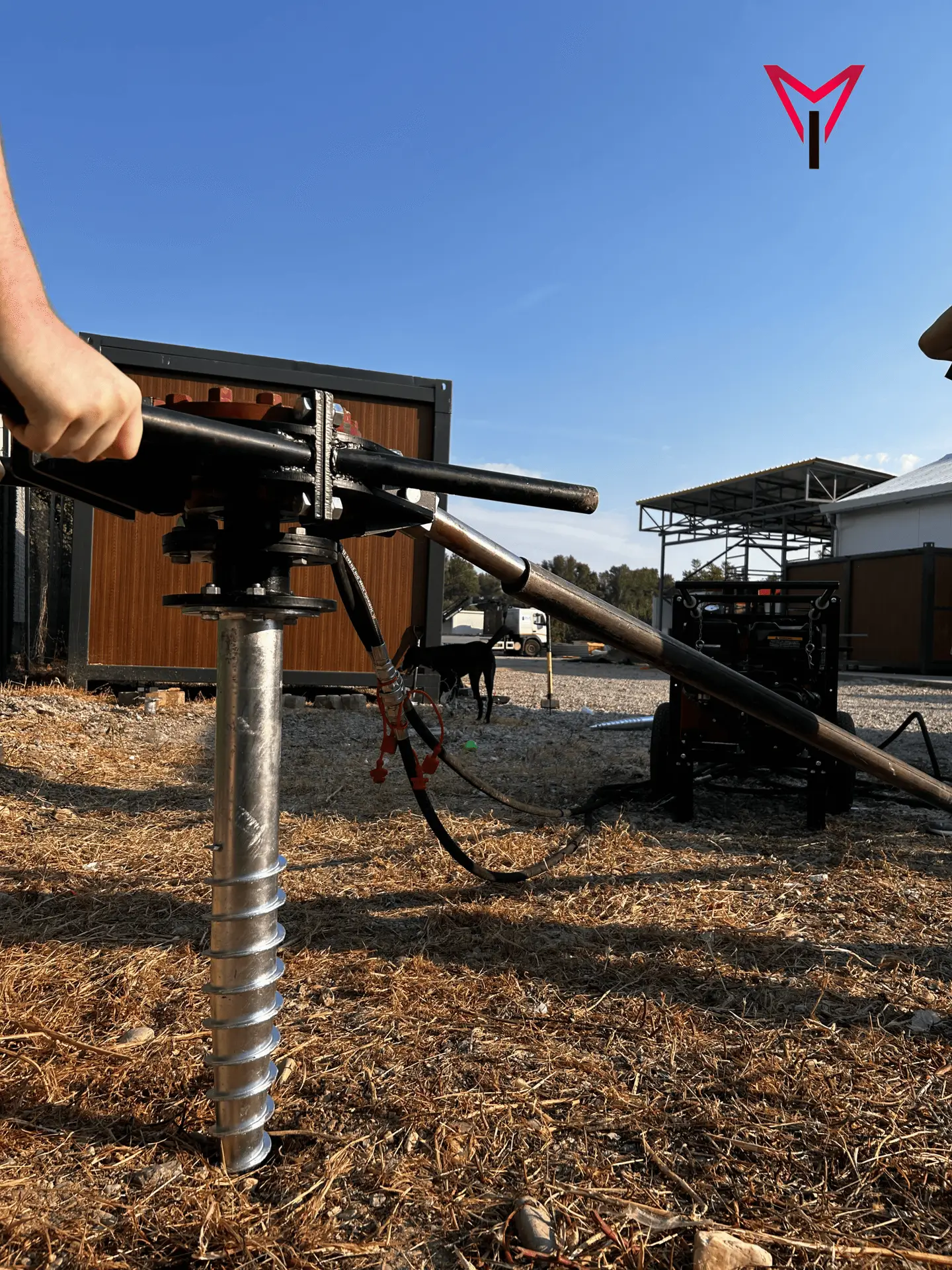

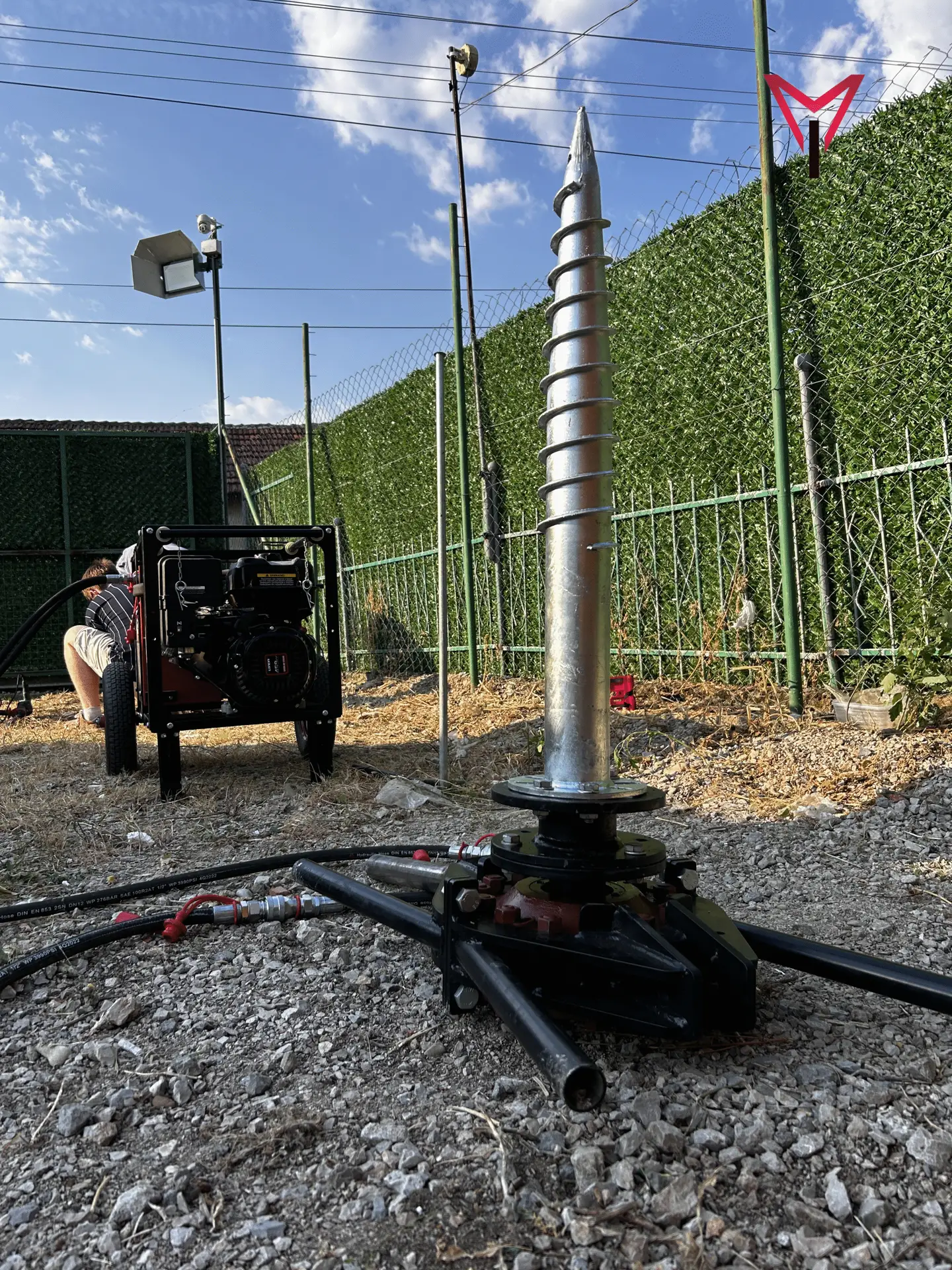

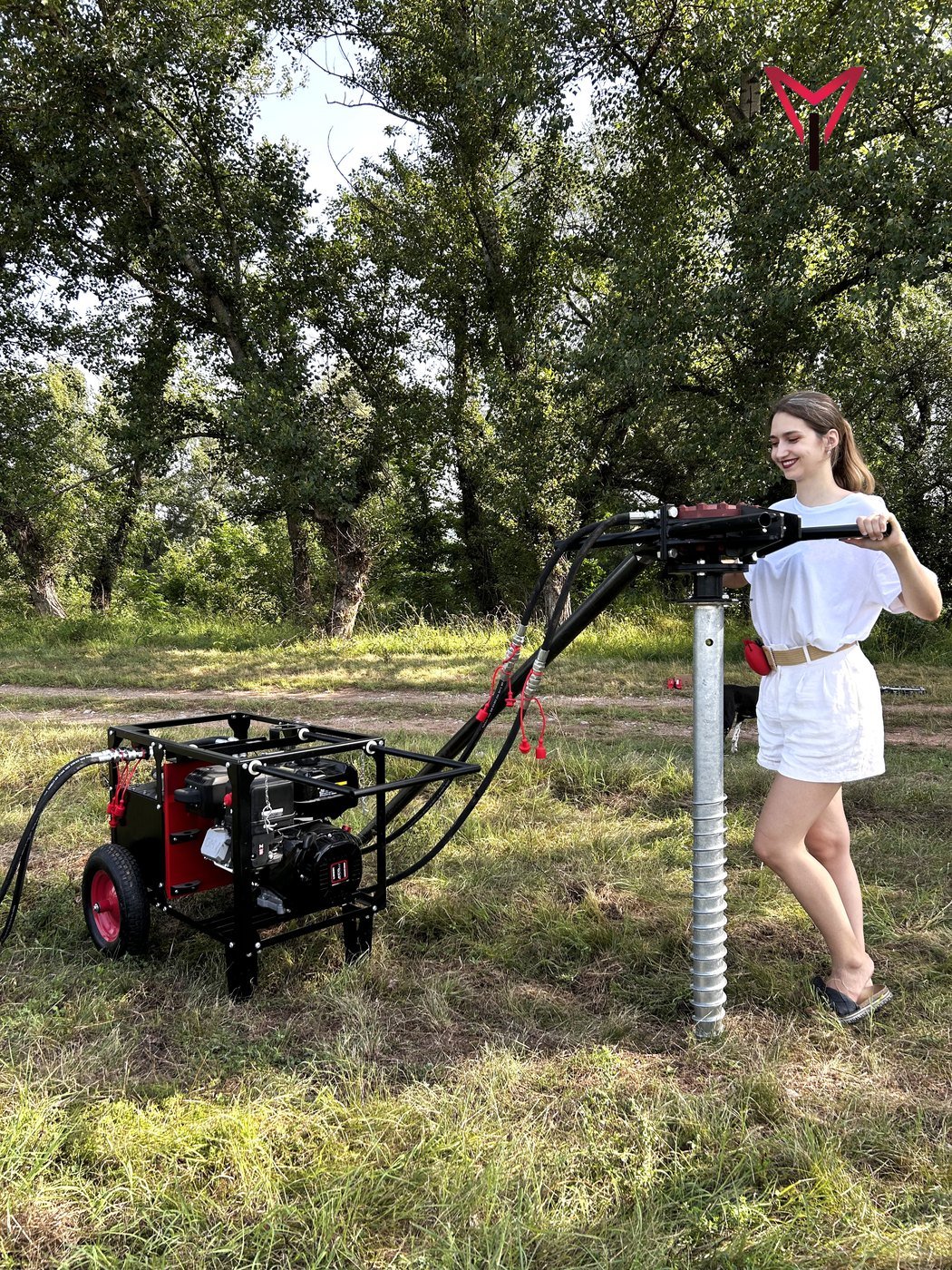

What makes handheld helical pile driver Falcon so effective?
-
Handles almost any terrain – high torque and hydraulic drive make installation smooth, even in tough soils.
-
Works with any helical pile size – installs helical piles from Ø56 mm to Ø219 mm.
-
Proven in the field – used by professional installers across Europe, the US, and beyond.
-
Built for all seasons – performs reliably from –40°C to +40°C, in any conditions: heat, cold, rain, or snow.
No special maintenance needed.
Helical anchor driver Falcon is built with a simple, robust mechanical system.
That means no need for special service centers, diagnostic tools.
Warranty obligations
Each unit comes with a factory warranty:
6 months or 960 engine hours — whichever comes first.
Even after the warranty period, our engineering support services remain available – we are always in touch and ready to help.
Worldwide Delivery
Equipment for helical pile installation Falcons for sale is available worldwide. Delivery options include sea, air, or road, depending on your location and timeline.
Each unit is safely packed using plastic pallet, honeycomb cardboard box, stretch film, polypropylene tape.
Our packaging is designed for international transport and complies with global shipping standards.
Whether you’re in Europe, North America, Australia, or Asia — your machine will arrive safely and ready to work.

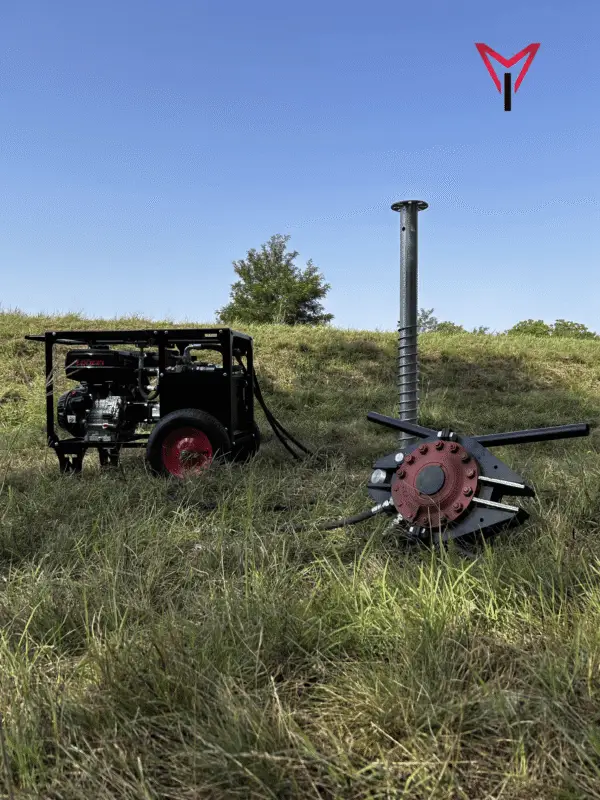

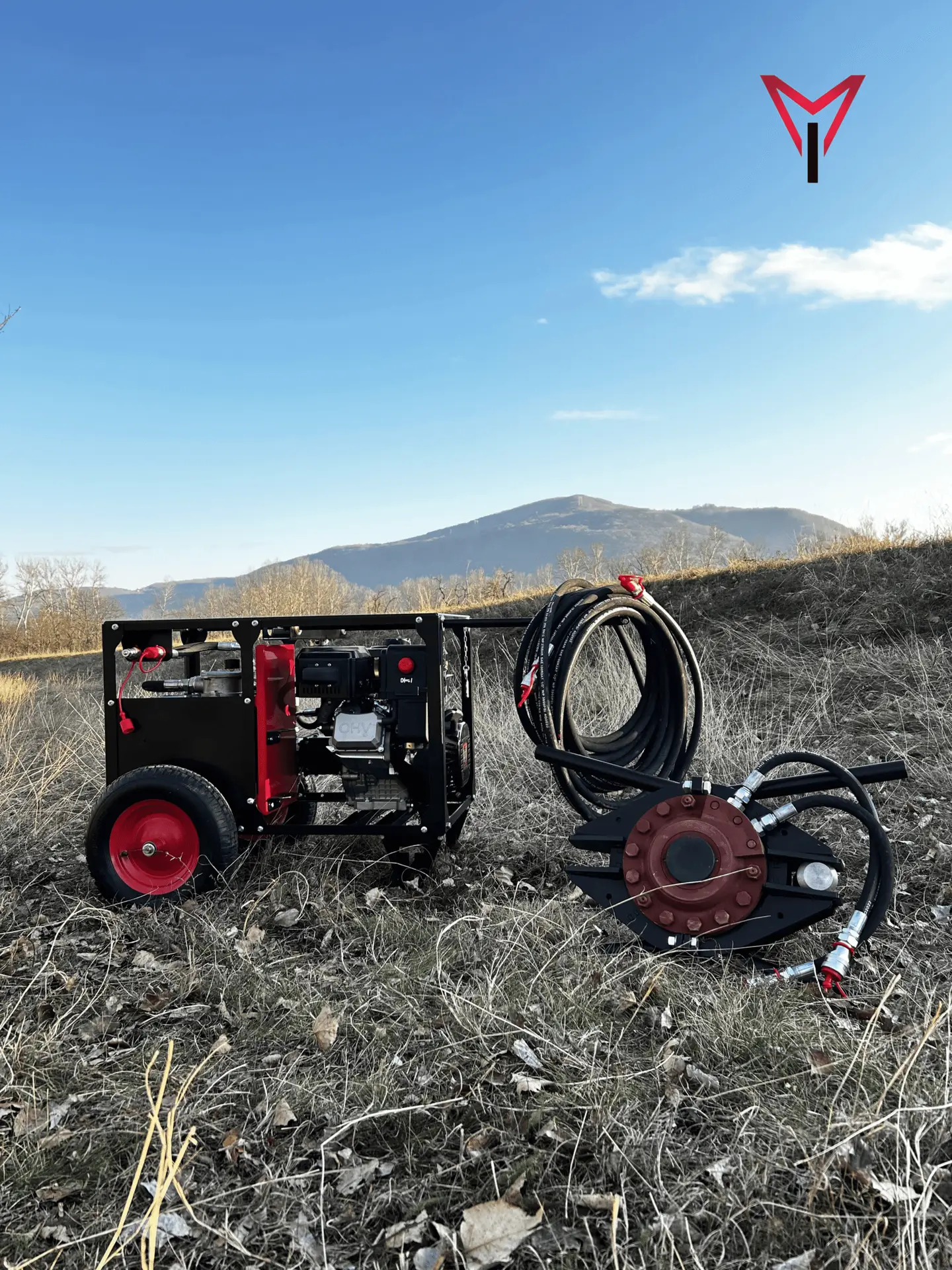

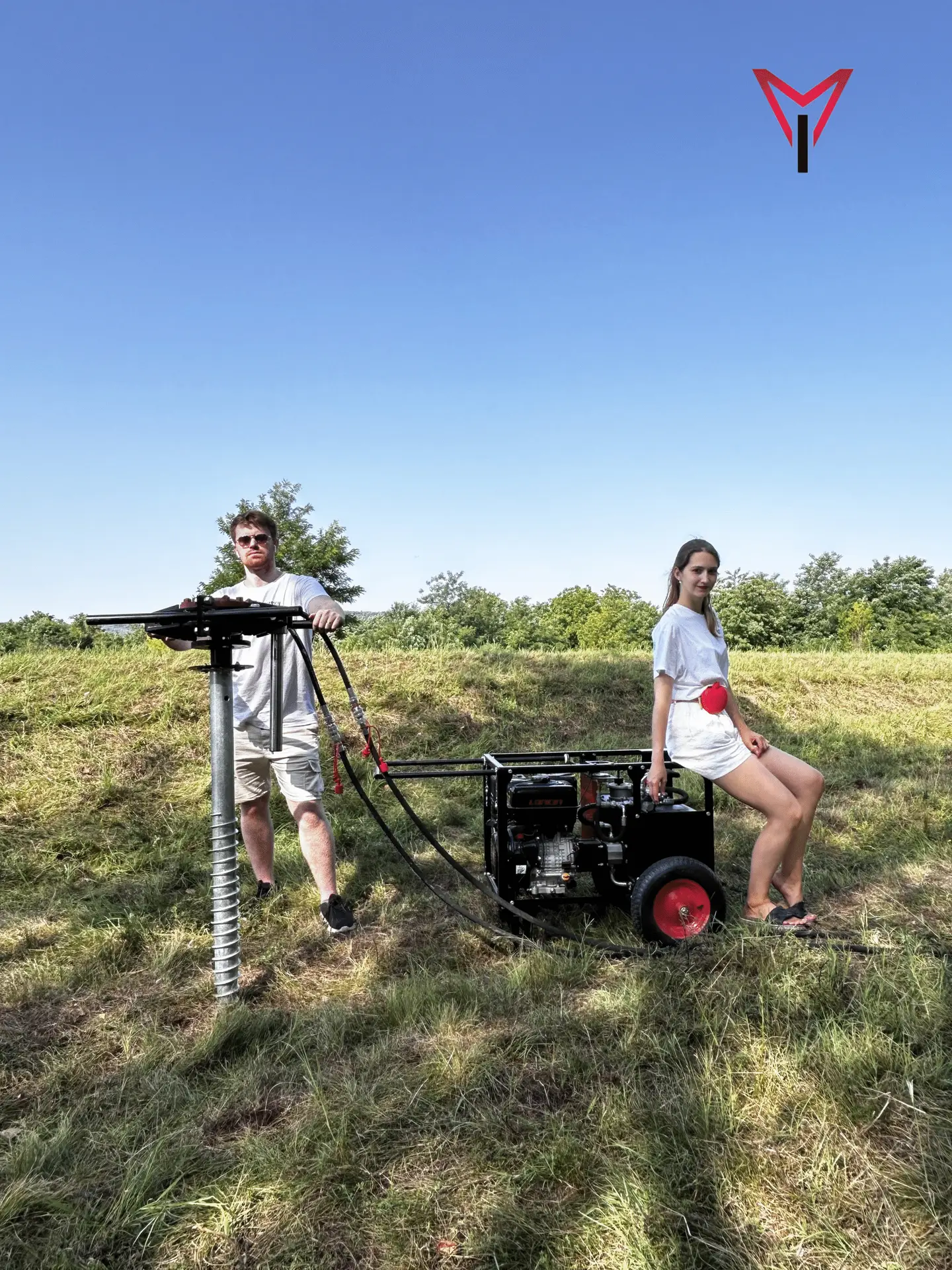

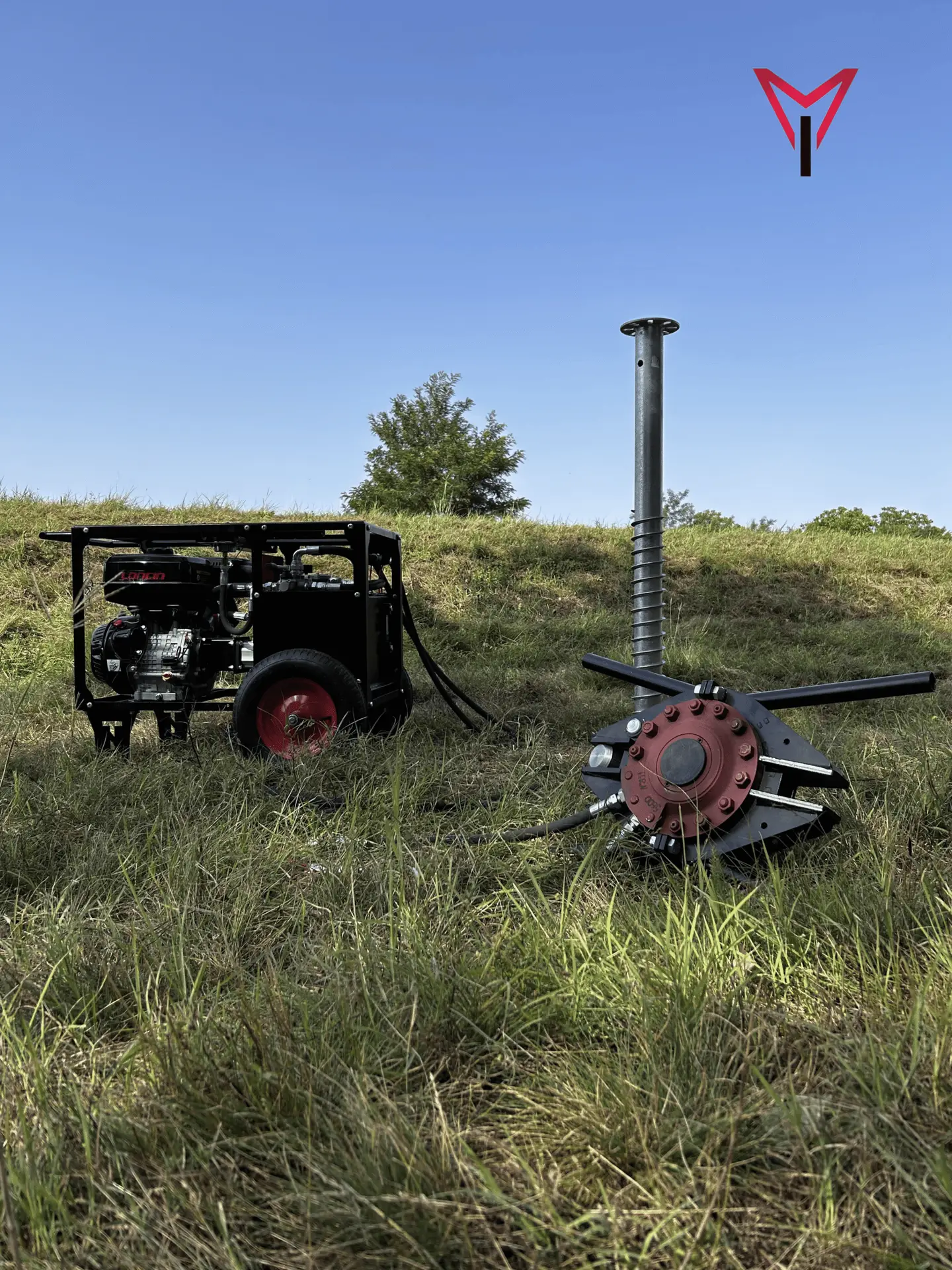

The portable equipment for helical pier installation Falcon set includes:
– Hydraulic Power Pack (NOMAD-LONCIN / 10KW / 14CC) – 1 pc
– Hand-held hydraulic drive head – 1 pc
– High-pressure hoses with quick couplers (10 m) – 2 pcs
– User manual – 1 pc
